High Quality Plastic Machine PP/PET Extrusion Low Consumption
Production Line
Core Components
Feeding form |
Screw-type |
Feeding capacity | 1000kg/h |
Control mode |
Variable frequency motor speed control |
Converter |
SIEMENS Siemens 3KW, using Ethernet control technology |
Feed rate | 1-30kg/h |
Material conveying method |
Screw type |
Deive motor |
0.4KW Siemens servo motor |
Control method |
Siemens servo speed control |
Servo drive machine |
Siemens, using Ethernet control technology |
Band |
Tuya |
Structure form | 175mm, Full-network double-column screen changer with hydraulic station |
Heating zone |
Two zones |
Heating power | 10KW Approx.10kw |
Brand |
JCTIMES |
Rated speed metering |
8-60 rpm |
Model number | E90,(371CC) |
Gearbox and motor power |
SIEMENS Siemens reducer, 7KW servo motor
|
Variable conversion control |
Siemens, using Ethernet control technology |
Brand | JCTimes |
Structure form |
Hanger runner |
Width of final product | 860mm |
Thickness of final product | 0.2-1.0mm |
Effective width of mold |
Single-sided outer plug
|
Heating zone | 8zones |
Heating power | 30KW |
Roller size |
lower roller diameter 400mm, middle and upper roller diameter 600mm |
Roller width | 1200mm |
Roller materials |
alloy steel |
Roller surface roughness |
mirror finish |
Hardness | ≥HRC60-62 |
Chrome layer thickness | 0.08mm-0.12mm |
Drive motor |
SIEMENS Siemens servo motor, 3 sets*7KW |
Linear velocity | 6-60m |
Edge triming assembly |
1 group, 3 knives, 1 group of left, middle and right, adjustable
distance |
Cutter form |
rotary cutter |
Ferrules winding |
a set |
Ferrules winding drive |
0.4KW servo-motor control |
Size | Ф200mm*1200mm |
Haul-off roller |
Upper rubber rollers and lower steel rods, rubber rollers cover
layer thickness 20mm, nitrile rubber, surface Shore hardness 65-70° |
Drive motors |
SIEMENS servo motor, 5KW |
Roll cylinder opening and closing |
Cylinder adjustment |
Wait controllers |
Using Ethernet technology control |
Form structure |
Flip-type double-station winder |
Air-expanded shaft |
3 inch, 6 inch general, both ends of the installation of mechanical
clutch, convenient disassembly of gas expansion shaft |
Maximum winding diameter | 1200mm |
Drive the motor |
A Siemens servo-motor |
Unwinding method |
Manual |
Winding method |
Automatic |
Oil tank |
Rhythm disk with lift |
Oil coating method |
Oiled on both sides or single sides |
Effective width | 1200mm |
Oil supply method |
Adopt pneumatic oil pump |
Production Description
Ageing resistance, water resistance, corrosion resistance,
resistance to ultraviolet ray, good flexibility, long service life,
etc.
Widely used in automotive sealing strip, sound insulation cushion,
automobile tail box, fenders, car interior and exterior decoration
parts, etc.

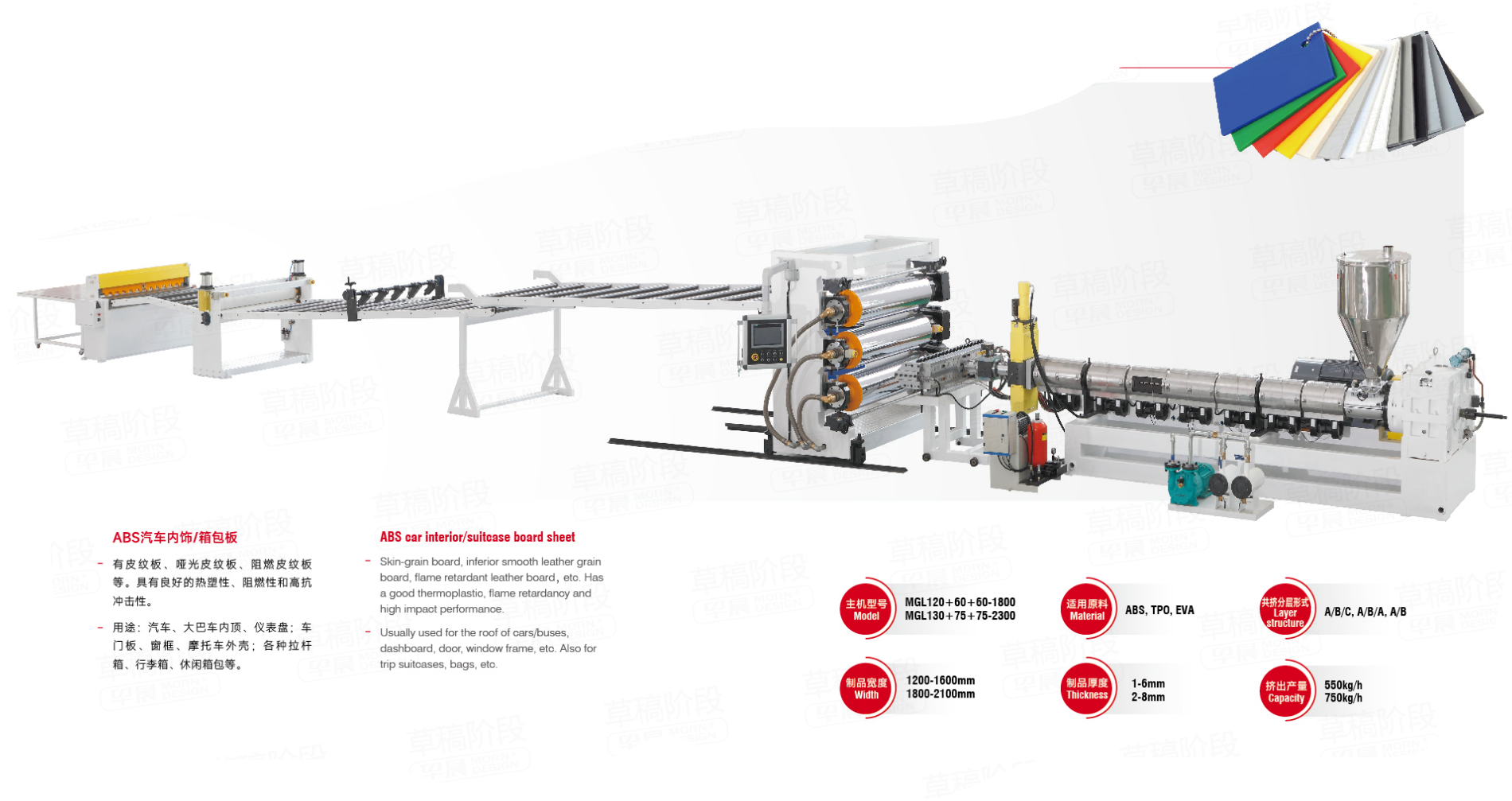

Skin-grain board, inferior smooth leather grain board, flame
retardant leather board, etc. Has a good thermoplastic, flame
retardancy and high impact performance.
Usually used for the roof of cars/buses, dashboard, door, window
frame, etc. Also for trip suitcases, bags, etc.
