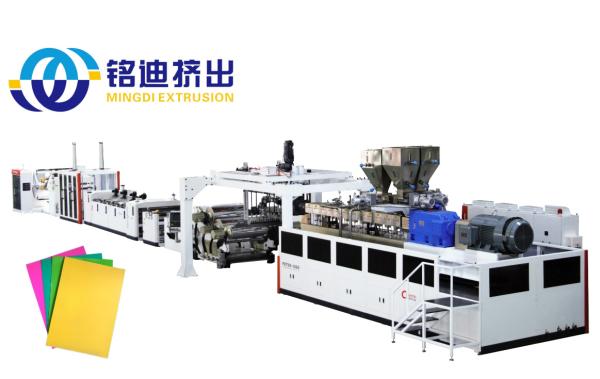

No Crystallizer& Duhumidifier,Double Vents APET/PETG/CPET/PLA Twin
Screw Production Line
Core Components
Feeding form |
Screw-type |
Feeding capacity | 1000kg/h |
Control mode |
Variable frequency motor speed control |
Converter |
SIEMENS Siemens 3KW, using Ethernet control technology |
Feed rate | 1-30kg/h |
Material conveying method |
screw type |
Deive motor |
0.4KW Siemens servo motor |
Control method |
Siemens servo speed control |
Servo drive machine |
Siemens, using Ethernet control technology |
Band |
Touya |
Structure form | 175mm, Full-network double-column screen changer with hydraulic station |
Heating zone |
Two zones |
Heating power |
Approx.10kw |
Brand |
JCTIMEC |
Rated speed metering | 8-60r (revolutions)转/min 8-60r rpm |
Model number | E90,(371CC) |
Gearbox and motor power |
SIEMENS Siemens reducer, 7KW servo motor
|
Variable conversion control |
Siemens, using Ethernet control technology |
Brand |
JCTMEC |
Structure form |
Hanger runner |
Width of final product | 860mm |
Thickness of final product | 0.2-1.0mm |
Effective width of mold |
Single-sided outer plug
|
Heating zone | 8zones |
加热功率 Heating power | 30KW |
Roller size |
lower roller diameter 400mm, middle and upper roller diameter 600mm |
Roller width | 1200mm |
Roller materials |
alloy steel |
Roller surface roughness |
mirror finish |
Hardness | ≥HRC60-62 |
Chrome layer thickness | 0.08mm-0.12mm |
Drive motor |
SIEMENS Siemens servo motor, 3 sets*7KW |
Linear velocity
| 6-60m |
Reduction gear |
SIEMENS Siemens Gearbox, 3 sets |
Edge triming assembly |
1 group, 3 knives, 1 group of left, middle and right, adjustable
distance |
Cutter form |
rotary cutter |
Ferrules winding |
a set |
Ferrules winding drive |
0.4KW servo-motor control |
Size | Ф200mm*1200mm |
Haul-off roller |
Upper rubber rollers and lower steel rods, rubber rollers cover
layer thickness 20mm, nitrile rubber, surface Shore hardness 65-70° |
Drive motors |
SIEMENS servo motor, 5KW |
Roll cylinder opening and closing |
Cylinder adjustment |
Wait controllers |
Using Ethernet technology control |
Form structure |
Flip-type double-station winder |
Air-expanded shaft |
3 inch, 6 inch general, both ends of the installation of mechanical
clutch, convenient disassembly of gas expansion shaft |
Maximum winding diameter | 1200mm |
Drive the motor |
A Siemens servo-motor |
Unwinding method |
Manual |
Winding method |
Automatic |
Control system | PLC |
| CPU | SIEMENS S7-1500 |
| HMI | SIEMENS 12 inches |
Inverters | SIEMENS |
miniature Circuit Breakers | SIEMENS |
Small relay |
Schneider |
Solid state relay |
Swiss Galle |
Characteristics
Strong adaptability:
Different thickness and width of the sheet can be produced to meet
a variety of material needs.
Precise control:
Equipped with intelligent control system to ensure stable
production process and high product accuracy.
Energy saving and environmental protection: Optimize energy allocation, reduce energy consumption, and meet
green production standards.
Widely used: Suitable for food, electronics, medicine, stationery, cosmetics
and other industries.
Quality service: Provide comprehensive technical support and after-sales service to
ensure customers worry-free use.
PLA sheet
Renewable biodegradable material. Widely used in package of
vegetables, fruits, eggs and baked food, also can be used for some
other packages like fresh flower and daily chemical product.
PET single layer/multi-!ayers sheet
- Widely used for thermoforming products, printing sheet,
agriculture seeding tray, furniture decoration, packaging, medical
suppliers, plastic cups, etc.
- It’s one of the advanced production lines in China. High
capacity, high precision, lower power consumption. The unique
function of "key to acceleration" can realize low speed adjustment,
high speed productionwithout fluctuation, with high stability.
