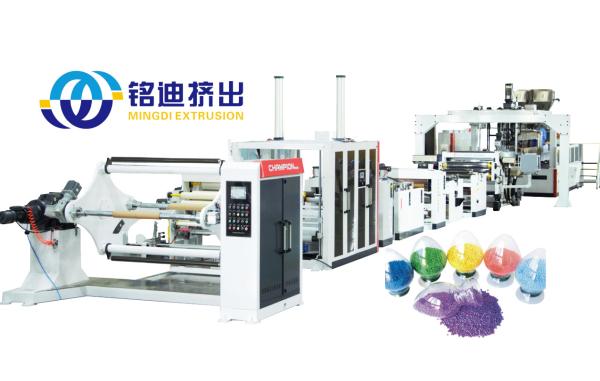

Furniture Veneer PP PS EVA Sheet Production Line Extrusion Machine 1200mm 1400mm

Ask Lasest Price
Brand Name :	MINGDI EXTRUSION
Model Number :	75/85
Certification :	CE,ISO
Price :	20000-200000$
Payment Terms :	T/T
Supply Ability :	200 sets one year
Delivery Time :	90days

Add to Cart

Product Details
Company Profile

Furniture Veneer PP PS EVA Sheet Production Line Extrusion Machine 1200mm 1400mm

Core Components

Feeding form	Screw-type
Feeding capacity	1000kg/h
Control mode	Variable frequency motor speed control
Converter	SIEMENS Siemens 3KW, using Ethernet control technology

Feed rate	1-30kg/h
Material conveying method	screw type
Deive motor	0.4KW Siemens servo motor
Control method	Siemens servo speed control
Servo drive machine	Siemens, using Ethernet control technology

Band	Touya
Structure form	Full-network double-column screen changer with hydraulic station
Heating zone	Two zones
Heating power	Approx.10kw

Brand	JingCheng
Structure form	Hanger runner
Width of final product	860mm
Thickness of final product	0.2-1.0mm
Effective width of mold	Single-sided outer plug
Heating zone	8zones
Heating power	30KW
Die head material	5CrNiMo

Roller size	lower roller diameter 400mm, middle and upper roller diameter 600mm
Roller width	1200mm
Roller materials	alloy steel
Roller surface roughness	mirror finish
Hardness	≥HRC60-62
Chrome layer thickness	0.08mm-0.12mm
Drive motor	SIEMENS Siemens servo motor, 3 sets*7KW
Linear velocity	6-60m

Edge triming assembly	1 group, 3 knives, 1 group of left, middle and right, adjustable distance
Cutter form	rotary cutter
Ferrules winding	a set
Ferrules winding drive	0.4KW servo-motor control

Form structure	Flip-type double-station winder
Air-expanded shaft	3 inch, 6 inch general, both ends of the installation of mechanical clutch, convenient disassembly of gas expansion shaft
Maximum winding diameter	1200mm
Drive the motor	A Siemens servo-motor
Unwinding method	Manual
Winding method	Automatic

Size	Ф200mm*1200mm
Haul-off roller	Upper rubber rollers and lower steel rods, rubber rollers cover layer thickness 20mm, nitrile rubber, surface Shore hardness 65-70°
Drive motors	SIEMENS servo motor, 5KW
Roll cylinder opening and closing	Cylinder adjustment
Wait controllers	Using Ethernet technology control

Control system	PLC
CPU	SIEMENS S7-1500
HMI	SIEMENS 12 inches
Inverters	SIEMENS
miniature Circuit Breakers	SIEMENS
Small relay	Schneider
Solid state relay	Swiss Galle

Production Description

Professional customization: For furniture veneer needs, professional design PP, PS, EVA sheet production line, to ensure that the material performance meets the strict requirements of the furniture industry.

High quality materials: The production line is suitable for PP, PS, EVA and other raw materials, and the produced sheet has excellent wear resistance, scratch resistance, high temperature resistance and environmental protection.

Precision extrusion technology: efficient single screw extruder is used to ensure uniform material melting, stable extrusion and consistent sheet thickness.

Advanced control system: Equipped with Siemens PLC automatic control system, to achieve accurate control and real-time monitoring of the production process, improve production efficiency.
